 Product >> Fiber Optic Switch >> 2X2 Bypass A Optical Switch
2X2 Bypass A Fiber Optic Switch,2X2BA Optical Switch
Name:

2X2 Bypass A Optical Switch

Class:
Fiber Optic Switch
Type:
2X2 Bypass A Optical Switch

2X2 Bypass A Fiber Optic Switch,2X2BA Optical Switch Specification


Fiberer Rohs

2X2 Bypass A Fiber Optic Switch, 2X2 Bypass A Optical Switch - Features




·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching


2X2 Bypass A Fiber Optic Switch, 2X2 Bypass A Optical Switch - Applications

·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)



Fiberer-FSW-2X2BA Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)55.0X(W)30.0X(H)12.8mm. It is an ideal component for OADM,OXC,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.

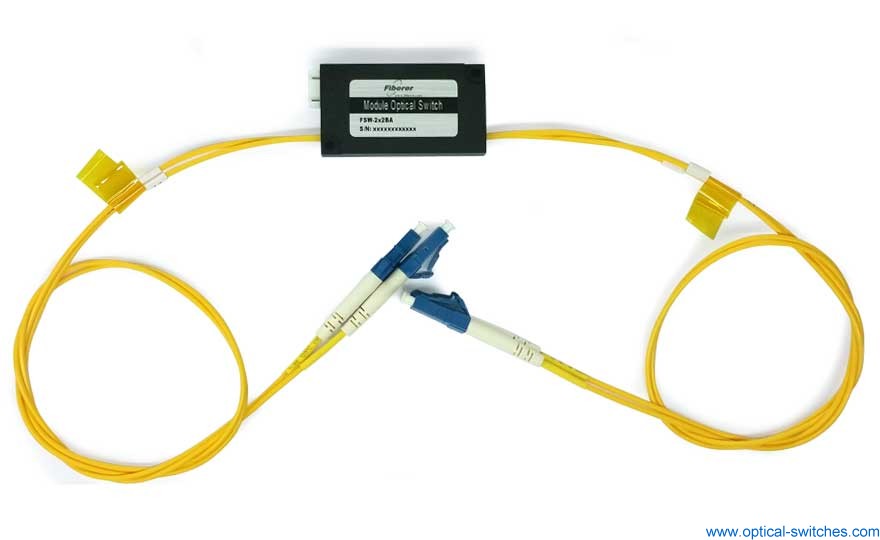

2x2 Bypass Optical Switch   2x2 Bypass Optic Switches

2X2 Bypass A Fiber Optic Switch, 2X2 Bypass A Optical Switch - Specifications

Parameters

Unit

Fiberer-FSW-2X2BA

Wavelength Range

nm

1260 ~ 1650

Test Wavelength

nm

1310 / 1550

Insertion Loss 1, 2

dB

Typ: 0.8    Max: 1.0

Return Loss 1, 2

dB

≥ 50

Crosstalk 1

dB

≥ 55

PDL

dB

≤0.05

WDL

dB

≤0.25

Repeatability

dB

≤±0.02

Operating Voltage

V

3.0  or  5.0

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

-20 ~ +70

Storage Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Weight

g

25

Dimension

mm

(L)55.0X(W)30.0X(H)12.8 ±0.2

Note:1 Within operating temperature and SOP.

2 Excluding Connectors.


2X2 Bypass A Fiber Optic Switch, 2X2 Bypass A Optical Switch - Pin Configurations

Type

State

Optical Route

Electric Drive

2X2BA



Pin 1

Pin 2

Pin 3

Pin 4

Latching

A

P1-P3

V+

GND

--

--

B

P1-P4, P2-P3

--

--

GND

V+


Type

State

Optical Route

Electric Drive

Status Sensor

2X2BA



Pin 1

Pin 2

Pin 3-4

Non-latching

A

P1-P3

--

--

Open

B

P1-P4,P2-P3

V+

GND

Close


2X2 Bypass A Fiber Optic Switch, 2X2 Bypass A Optical Switch - Optical Route

State A

State B

2X2 Bypass Optical Switch Optical Route State A

2X2 Bypass Optical Switch Optical Route State B



2X2 Bypass A Fiber Optic Switch, 2X2 Bypass A Optical Switch - Dimension

2X2 Bypass Optical Switch Dimension


2X2 Bypass A Fiber Optic Switch, 2X2Bypass A Optical Switch- Electrical Specification

Specifications

Voltage

Current

Resistance

5V   latching

4.5~5.5 V

36~44 mA

125 Ω

5V   non-latching

4.5~5.5 V

26~32 mA

175 Ω

3V   latching

2.7~3.3 V

54~66 mA

50 Ω

3V   non-latching

2.7~3.3 V

39~47 mA

70 Ω


2X2 Bypass A Fiber Optic Switch, 2X2 Bypass A Optical Switch- Ordering Information: Fiberer-FSW-2X2BA-A-B-C-D-E-F-G


A

B

C

D

E

F

G

Fiber Type

Operating
Voltage

Switch Type

Test Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

SM: SM,9/125

M5:MM,50/125

M6:MM,62.5/125

X:Others

3: 3V

5: 5V


L:Latching

N:Non-latching

850:850nm

1310:1310nm

1550:1550nm

1310/1550:1310/1550nm

X:Others

90:900um

20:2.0mm

X: Others

05: 0.5m±5cm

10: 1.0m±5cm

15: 1.5m±5cm

X: Others

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

STA: ST/APC

LP: LC/PC

LA: LC/APC

X: Others

2x2 Bypass Switches Factory   2x2 Bypass Optic Switch Engineer   2x2 Bypass Optic Switch Package   2x2 Bypass Optic Switch Shipment Box





Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
