 Product >> Multi channel Optical Switch >> 1XN Fiber Optic Switch
1XN Fiber Optic Switch,1XN Optical Switch
Name:

1XN Fiber Optic Switch

Class:
Multi channel Optical Switch
Type:
1XN Fiber Optic Switch

1XN Fiber Optic Switch,1XN Optical Switch Specification


Fiberer Rohs
1XN Fiber Optic Switch,1XN Optical Switch--Features

•More Than 128 Channels
•Low Loss and High Reliability
•Parallel Interface (TTL)
•Modularized Design
•Epoxy-free on Optical Path
1XN Fiber Optic Switch,1XN Optical Switch--Applications

•Ring Network
•Remote Monitoring in Optical Network
•Testing of Fiber, Optical Component



1XN Optical switch is a kind of functional component, with the ability of switching optical route. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.

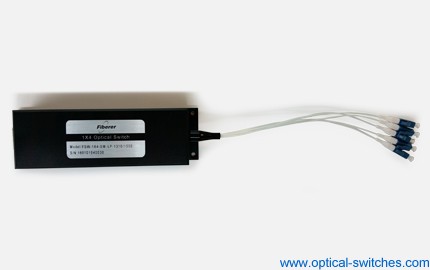

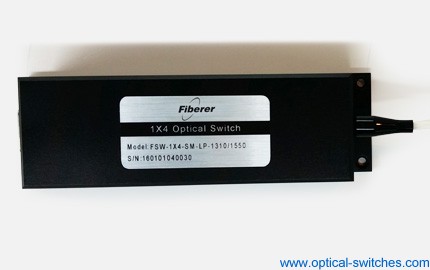

1x4 Optical Switches   1x4 Fiber Optic Switch

1XN Fiber Optic Switch,1XN Optical Switch--Specifications

Parameters

Unit

Fiberer-FSW-1×N

Insertion Loss

dB

1 < N ≤ 45

45 < N ≤ 88

88 < N ≤ 128

Typ: 0.8   Max: 1.0

Typ: 1.2   Max: 1.5

Typ: 1.5   Max: 1.8

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Return Loss

dB

MM ≥ 30   SM ≥ 50

Crosstalk

dB

≥ 55

PDL

dB

≤ 0.05

WDL

dB

≤ 0.25

TDL

dB

≤ 0.25

Repeatability

dB

≤ ±0.05

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤ 10 (Sequence switch time of adjacent channel)

Optical Power

mW

≤500

Operating Temperature

-20 ~ +70

Storage Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Dimension

mm

135×40×32 (N≤4)

135×64×32 (N≤12)

184×78×36 (N≤16)

184×78×66 (N≤45)

184×156×66 (N≤88)

184×220×66 (N≤128)

140×77.5×32 (N≤16)

140×77.5×64 (N≤32)



1XN Fiber Optic Switch,1XN Optical Switch--Pin Configurations

DB-9 male connector  (max.1×16)

Pin No.

Signal Name

I / O

Description

1

D0

Input

TTL, Channel selection bit 0

2

D1

Input

TTL, Channel selection bit 1

3

D2

Input

TTL, Channel selection bit 2

4

D3

Input

TTL, Channel selection bit 3

5

/RESET

Input

TTL, Low level reset to channel 0. High level means channel selection bits are effective.

6

/READY

Output

TTL, Ready (High=Not ready, Low=Ready)

7

ERROR

Output

TTL, Error (High=Error, Low=No error)

8

GND

Input

Ground

9

+5VDC

Input

5.0±5% VDC Power Supply (max 550mA)

DB-15 male connector (max.1×32)

Pin No.

Signal Name

I / O

Description

2

D0

Input

TTL, Channel selection bit 0

3

D1

Input

TTL, Channel selection bit 1

4

D2

Input

TTL, Channel selection bit 2

5

D3

Input

TTL, Channel selection bit 3

6

D4

Input

TTL, Channel selection bit 4

11

/RESET

Input

TTL, Low level reset to channel 0. High level means channel selection bits are effective.

7

/READY

Output

TTL, Ready (High=Not ready, Low=Ready)

8

ERROR

Output

TTL, Error (High=Error, Low=No error)

1, 9

GND

Input

Ground

15

+5VDC

Input

5.0±5% VDC Digital power supply (max 50mA)

12

VM

Input

5.0±5% VDC or 12±5% VDC Drive power supply (max 500mA)

10, 13, 14

NA



DB-25 male connector (max.1×128)

Pin No.

Signal Name

I / O

Description

15

D0

Input

TTL, Channel selection bit 0

16

D1

Input

TTL, Channel selection bit 1

17

D2

Input

TTL, Channel selection bit 2

18

D3

Input

TTL, Channel selection bit 3

19

D4

Input

TTL, Channel selection bit 4

20

D5

Input

TTL, Channel selection bit 5

21

D6

Input

TTL, Channel selection bit 6

22

/RESET

Input

TTL, Low level reset to channel 0. High
level means channel selection bits are effective.

2

/READY

Output

TTL, Ready (High=Not ready, Low=Ready)

3

ERROR

Output

TTL, Error (High=Error, Low=No error)

1, 10, 14, 23

GND

Input

Ground

12, 25

+5VDC

Input

5.0±5% VDC Digital power supply (max 50mA)

13

VM

Input

5.0±5% VDC or 12±5%
VDC Drive power supply

N≤45

Current supply ≤500mA

11, 24

N≤88

Current supply ≤750mA

N≤128

Current supply ≤1000mA

4, 5, 6, 7, 8, 9

NA



1XN Fiber Optic Switch,1XN Optical Switch--Channel Selection Table

Max Channel

Input

Active Channel

/RESET

D6

D5

D4

D3

D2

D1

D0

N=16

0

x

x

x

x

x

x

x

0 reset

1

x

x

x

0

0

0

0

COM → 1

x

x

x

0

0

0

1

COM → 2

x

x

x

0

0

1

0

COM → 3

x

x

x

x

, , x

x

1

1

1

1

COM → 16


N=128

0

x

x

x

x

x

x

x

0 reset

1

0

0

0

0

0

0

0

COM → 1

0

0

0

0

0

0

1

COM → 2

0

0

0

0

0

1

0

COM → 3

1

1

1

1

1

1

1

COM → 128

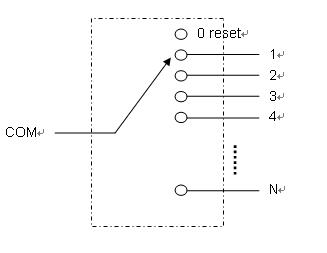

1XN Fiber Optic Switch,1XN Optical Switch--Optical Route

1XN Fiber Optic Switch Optical Route

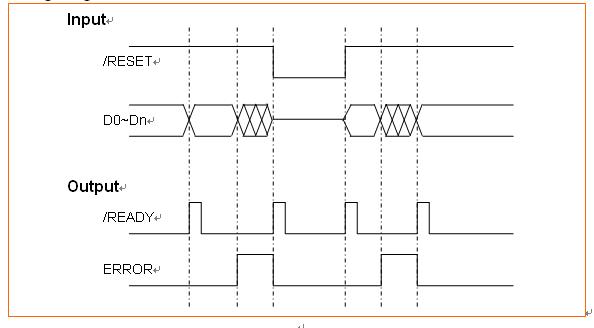

1XN Fiber Optic Switch,1XN Optical Switch--Timing Diagram

1XN Fiber Optic Switch Timing Diagram

1XN Fiber Optic Switch,1XN Optical Switch--Dimension

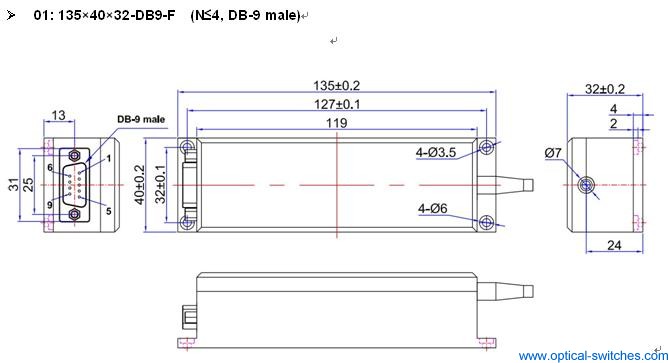

1X4 Optical Switch Dimension

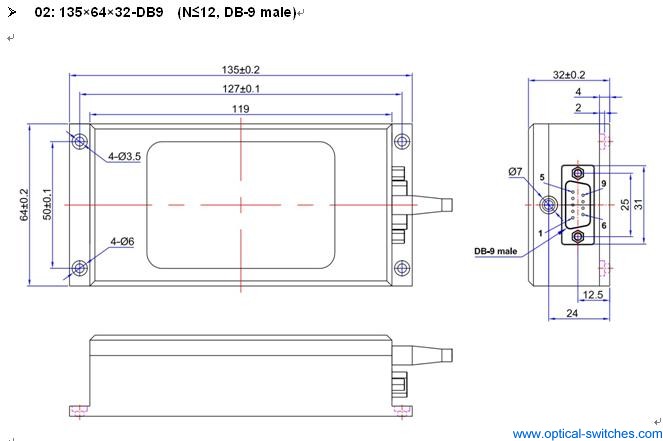

1X12 Optical Switch Dimension

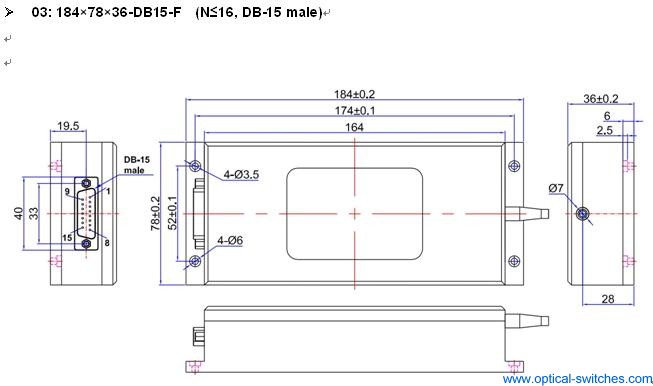

1X16 Optical Switch Dimension

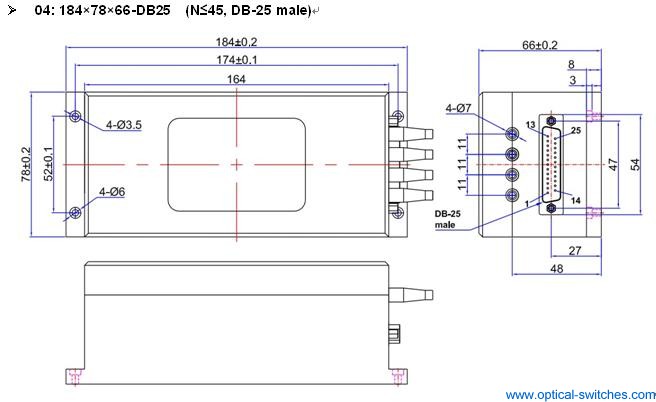

1X45 Optical Switch Dimension

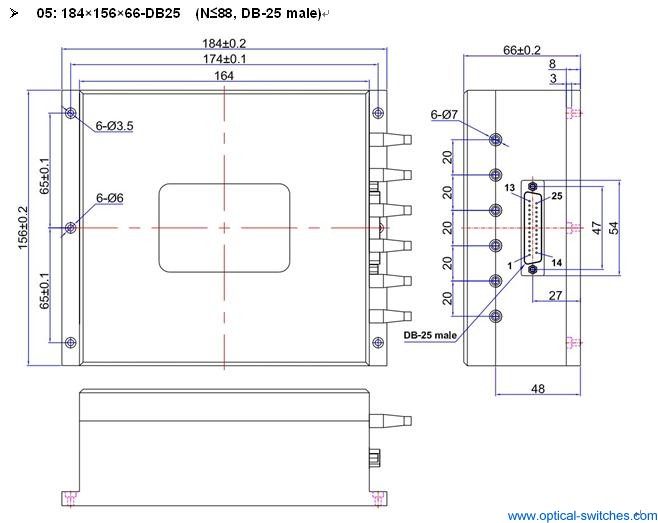

1X88 Optical Switch Dimension

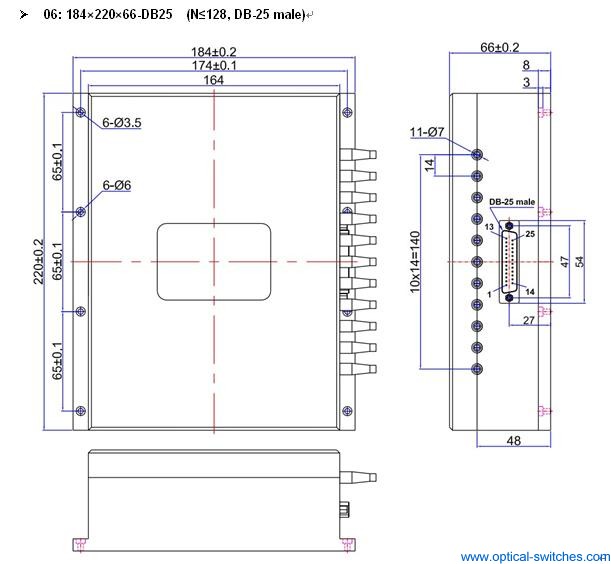

1X128 Optical Switch Dimension

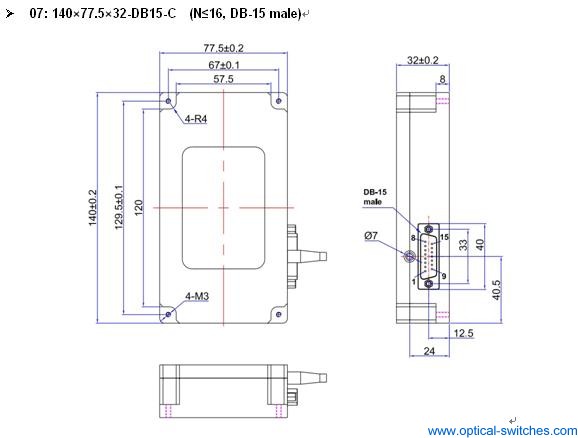

1X16 Optical Switch Dimension

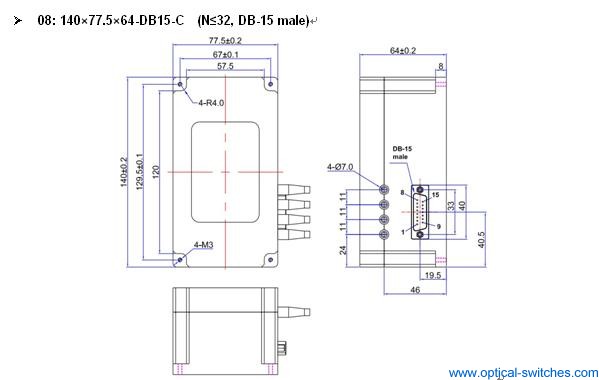

1X32 Optical Switch Dimension



1XN Fiber Optic Switch,1XN Optical Switch--

Ordering Information:  Fiberer-FSW-1×N-A-B-C-D-E-F

N

A

B

C

D

E

F

Channel

Fiber Type

Test Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

Dimension

1 ~ 128

SM: SM, 9/125
M5: MM, 50/125
M6: MM, 62.5/125
X: Others

850: 850nm
1310: 1310nm
1550: 1550nm
1310/1550:1310/1550nm
X:Others

90: 900um
20: 2.0mm
30: 3.0mm
X: Others

05: 0.5m±5cm
10: 1.0m±5cm
15: 1.5m±5cm
X: Others

OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
STA: ST/APC
LP: LC/PC
LA: LC/APC
X: Others

01: 135×40×32-DB9-F
02: 135×64×32-DB9
03: 184×78×36-DB15-F
04: 184×78×66-DB25
05: 184×156×66-DB25
06: 184×220×66-DB25
07: 140×77.5×32-DB15-C
08: 140×77.5×64-DB15-C
