 Product >> Mini Optical Switch >> Mini Fiber Optic Switch
Mini Fiber Optic Switch
Name:

Mini Fiber Optic Switch

Class:
Mini Optical Switch
Type:
Mini Fiber Optic Switch

Mini Fiber Optic Switch Specification


Fiberer Rohs
Mini Fiber Optic Switch,Mini Optical Switch - Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching

Mini Fiber Optic Switch,Mini Optical Switch - Applications
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)

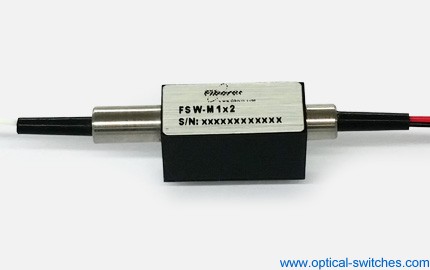

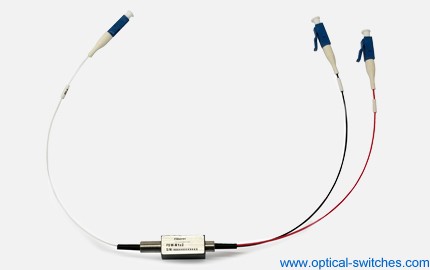

Mini 1x2 Optical Switch   Mini 1x2 Fiber Optic Switch

Mini Fiber Optic Switch,Mini Optical Switch - Specification
Parameters
Unit
M1×2 or M2×2 or M2×2B
M1×2 or M2×2B
Wavelength Range
nm
850±40 / 1300±40
1260 ~ 1650
Test Wavelength
nm
850 / 1310
1310 / 1550
Insertion Loss 1, 2,
dB
Typ: 0.6 Max: 0.8
Return Loss 1, 2,
dB
MM ≥ 30 SM ≥ 50
Crosstalk 1,
dB
MM ≥ 35 SM ≥ 55
PDL
dB
≤0.05
WDL
dB
≤0.3
Repeatability
dB
≤±0.02
Operating Voltage
V
5.0
Voltage Pulse Width
(Latching)

ms

≥ 20
Durability
Cycles
≥ 10 Million
Switching Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature


-5 ~ +70
Storage
Temperature


-40 ~ +85
Relative Humidity
%
5 ~ 95
Dimension
mm
(L)21.0×(W)9.0×(H)12.0 ± 0.2
Note: 1   Within operating temperature and SOP.
2   Excluding Connectors.

Mini Fiber Optic Switch,Mini Optical Switch- Pin Configurations
Type
State
Optical Route
Electric Drive
Status Sensor
M1×2


Pin 1
Pin 8
Pin 2-3
Pin 3-4
Pin 5-6
Pin 6-7

 Latching
 A
 P1-P2
5V Pulse
 GND
 Open
 Close
 Close
 Open
 B
 P1-P3
 GND
 5V Pulse
 Close
 Open
 Open
 Close

 Non
-latching
 A
P1-P2
 5V Pulse
GND
 Open
 Close
 Close
 Open
 B
               P1-P3
 --
 --
 Close
 Open
 Open
 Close

Type
State
Optical Route
Electric Drive
Status Sensor
M2×2


Pin 1
Pin 8
Pin 2-3
Pin 3-4
Pin 5-6
Pin 6-7

 Latching
A
 P1-P4,P3-P2
 5V Pulse
 GND
 Open
 Close
 Close
 Open

 B
 P1-P2,P3-P4
 GND
 5V Pulse
 Close
 Open
 Open
 Close
 Non
-latching
 A
 P1-P4,P3-P2
 5V Pulse
 GND
 Open
 Close
 Close
 Open
 B
P1-P2,P3-P4
 --
 --
 Close
 Open
 Open
 Close

Type
State
Optical Route
Electric Drive
Status Sensor
M2×2B


Pin 1
Pin 8
Pin 2-3
Pin 3-4
Pin 5-6
Pin 6-7



Latching


A

P1-P4,P3-P2

5V Pulse

GND

Open

Close

Close

Open


B

P1-P3

GND

5V Pulse

Close

Open

Open

Close


Non-latching

A

P1-P4,P3-P2

5V Pulse

GND

Open

Close

Close

Open

B

P1-P3

--

--

Close

Open

Open

Close

Mini Fiber Optic Switch,Mini Optical Switch - Optical Route
M1×2
State A
State B

Mini 1x2 Optical Switch Optical Route


Mini 1x2 Fiber Optic Switch Optical Route

M2×2
State A
State B
Mini 2x2 Optical Switch Optical Route

Mini 2x2 Fiber Optic Switch Optical Route


M2×2B
State A
State B

Mini 2x2 bypass Optical Switch Optical Route




Mini 2x2 bypass Fiber Optic Switch Optical Route



Mini Fiber Optic Switch,Mini Optical Switch - Electrical Specification
Specifications
Voltage
Current
Resistance
5V latching
4.5~5.5 V
22.2(±10%) mA
202.5(±10%) Ω
5V non-latching
4.5~5.5 V
31(±10%) mA
145(±10%) Ω
3V latching
2.7~3.3 V
33.3(±10%) mA
90(±10%) Ω
3V non-latching
2.7~3.3 V
46.7(±10%) mA
64.2(±10%) Ω

Mini Fiber Optic Switch,Mini Optical Switch- Ordering Information: Fiberer-FSW-A-B-C-D-E-F-G-H
A
B
C
D
E
F
G
H

Optical Switch Type

Fiber
Type

Operating
Voltage

Switch Type

Test  Wavelength

Tube
Type

Fiber Length
(Include connector)

Connector
M1×2
M2×2
M2×2B
SM:SM,
9/125
M5:MM,
50/125
M6:MM,
62.5/125
X: Others
5: 5V
3: 3V
L: Latching
N:
Non-latc hing
850: 850 nm
1310: 1310 nm
1550:1550n m
8513:
850&1310 nm(MM)
1315:
1310&1550 nm(SM)
X:Others
25:250 um
90:900 um
X: Others
05: 0.5m±5cm
10: 1.0m±5cm
15: 1.5m±5cm
X: Others
OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
LP: LC/PC
LA: LC/APC
DLP: Duplex
LC/PC
MTP:MTP
 X: Others

Mini Optical Switch Factory   Mini Fiber Optic Switch Test   Mini Optical Switch package   Mini 1x2 Optic Switch Shipping







Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
