 Product >> Multi channel Optical Switch >> 2X4 Fiber Optic Switch
2X4 Fiber Optic Switch,2X4 Optical Switch
Name:

2X4 Fiber Optic Switch

Class:
Multi channel Optical Switch
Type:
2X4 Fiber Optic Switch

2X4 Fiber Optic Switch,2X4 Optical Switch Specification


Fiberer Rohs
2X4 Fiber Optic Switch,2X4 Optical Switch--Features

•Wide Wavelength Range
•Low Crosstalk
•High Stability, High Reliability
•Epoxy-free on Optical Path
2X4 Fiber Optic Switch,2X4 Optical Switch--Applications
•R&D in Laboratory
•System Monitoring
•OADM
•OXC

Fiberer-FSW-2X4 Optical Switch is an ideal component for OADM,OXC,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.

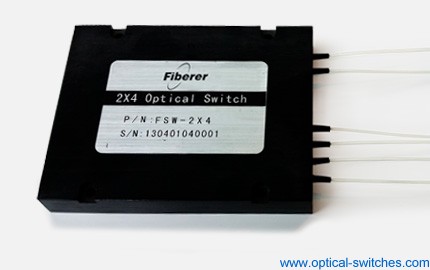

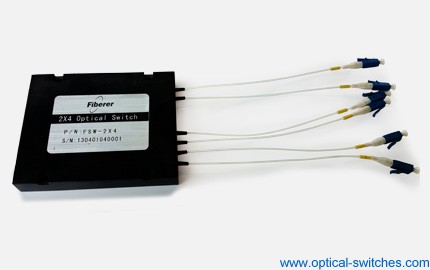

2x4 Optical Switch   2x4 Fiber Optic Switch

2X4 Fiber Optic Switch,2X4 Optical Switch--Specifications

Parameters

Unit

Fiberer-FSW-1X8

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Insertion Loss

dB

Typ: 2.8 Max: 3.2

Return Loss

dB

MM ≥ 30 SM ≥ 50

Crosstalk

dB

MM ≥ 35 SM ≥ 55

PDL

dB

≤ 0.15

WDL

dB

≤ 0.35

Repeatability

dB

≤ ±0.05

Power Supply

V

5.0 ± 5%

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

-5 ~ +70

Storage Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Dimension

mm

(L)95X(W)76X(H)14 ±0.2


2X4 Fiber Optic Switch,2X4 Optical Switch--Pin Configurations


Pin No.

Signal Name

I / O

Description

1

1D0

Input

TTL, COM 1 Channel selection bit 0

2

1D1

Input

TTL, COM 1 Channel selection bit 1

3

2D0

Input

TTL, COM 2 Channel selection bit 0

4

2D1

Input

TTL, COM 2 Channel selection bit 1

5

/EN

Input

Channel Selection Enabled.

6

RST

Input

Reset

7

VCC

Input

5.0±5% VDC Power Supply (max 200mA).

8

GND

Input

Ground

9

NA



10

NA



11

NA



12

NA



13

1S0

Output

TTL, COM 1 Switch status output bit 0

14

1S1

Output

TTL, COM 1 Switch status output bit 1

15

2S0

Output

TTL, COM 2 Switch status output bit 0

16

2S1

Output

TTL, COM 2 Switch status output bit 1

17

NA



18

NA



19

NA



20

NA




2X4 Fiber Optic Switch,2X4 Optical Switch--Switch Status

Input

Active Channel

Output

/EN

1D1

1D0

2D1

2D0

1S1

1S0

2S1

2S0

0

0

0

0

1

COM 1→1

COM 2→2

0

0

0

1

0

0

1

0

COM 2→3

0

0

1

0

0

0

1

1

COM 2→4

0

0

1

1

0

1

0

0

COM 1→2

COM 2→1

0

1

0

0

0

1

1

0

COM 2→3

0

1

1

0

0

1

1

1

COM 2→4

0

1

1

1

1

0

0

0

COM 1→3

COM 2→1

1

0

0

0

1

0

0

1

COM 2→2

1

0

0

1

1

0

1

1

COM 2→4

1

0

1

1

1

1

0

0

COM 1→4

COM 2→1

1

1

0

0

1

1

0

1

COM 2→2

1

1

0

1

1

1

1

0

COM 2→3

1

1

1

0

1

x

x

x

x

Hold

Hold


2X4 Fiber Optic Switch,2X4 Optical Switch--Optical Route

2X4 Optical Switch Optical Route

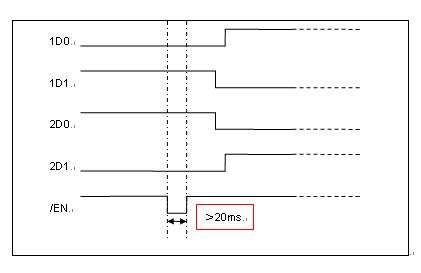

2X4 Fiber Optic Switch,2X4 Optical Switch--Timing Diagram

2X4 Optical Switch Timing Diagram

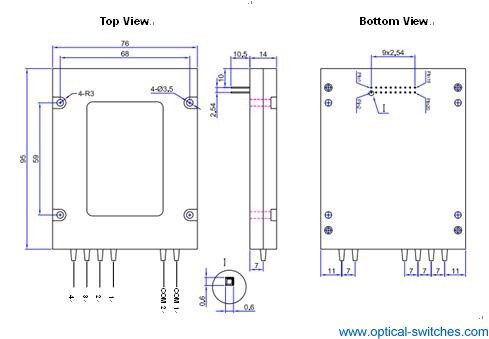

2X4 Fiber Optic Switch,2X4 Optical Switch--Dimension

2X4 Optical Switch Dimension

2X4 Fiber Optic Switch,2X4 Optical Switch--Ordering Information:  Fiberer-FSW-2X4-A-B-C-D-E-F

A

B

C

D

E

F

Fi, ber Type

Switch Type

Test Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

SM: SM, 9/125
M5:MM, 50/125
M6:MM, 62.5/125
X: Others

L: Latching
X: Others

850: 850nm
1310: 1310nm
1550: 1550nm
1310/1550:1310/1550nm
X:Others

90:900um
X: Others

05: 0.5m±5cm
10: 1.0m±5cm
15: 1.5m±5cm
X: Others

OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
STA: ST/APC
LP: LC/PC
LA: LC/APC
X: Others
